Overview
The Bunsen burner is one of the most recognizable and widely used instruments in modern laboratories. Named after Robert Bunsen, who co-designed it in 1854, this laboratory tool produces a hot, sootless, and non-luminous flame that can be precisely adjusted for a wide range of experimental applications. Its design allows for the careful mixing of gas and oxygen in the central barrel before combustion, enabling users to regulate the temperature, size, and intensity of the flame with high precision.
The Bunsen burner is indispensable in laboratories for heating chemicals, sterilizing instruments, and even performing certain delicate manipulations of glass or metal. One particularly important application is creating a convection current, which lifts airborne particulates away from experimental areas. This effect is critical for maintaining a sterile workspace, particularly in microbiology, cell culture, or molecular biology experiments.
However, because the Bunsen burner produces an open flame, it requires strict adherence to safety protocols. Before using it, laboratory personnel must ensure that all loose hair, clothing, or accessories are secured, and that fire safety equipment, such as extinguishers or fire blankets, is easily accessible. With careful attention to setup, operation, and safety, the Bunsen burner is a reliable, effective, and essential laboratory instrument.
Components of a Bunsen Burner
A typical Bunsen burner is made up of several critical components that together ensure safe and controlled operation:
Barrel (Burner Tube):
The barrel is the vertical tube in which air and gas mix before combustion. The design of the barrel allows the user to control the flame’s characteristics based on airflow and gas supply. A properly adjusted flame is both hot and clean, without producing smoke or soot.Collar:
Located at the base of the barrel, the collar regulates air intake, which directly influences the flame’s temperature. Rotating the collar counterclockwise opens the air vents, allowing more oxygen into the mix, which results in a hotter, blue flame. Rotating clockwise closes the vents, producing a cooler, yellow safety flame.Air Vents and the Venturi Effect:
The Bunsen burner uses the Venturi effect to draw air into the barrel through collar openings. This occurs because reducing air pressure inside the tube pulls ambient air into the barrel, ensuring proper combustion.Needle (Gas Flow) Valve:
The needle valve controls the flow of gas from the gas inlet. Adjusting this valve allows users to fine-tune the size and intensity of the flame, working in tandem with the collar to achieve optimal combustion.Base:
The burner’s base provides stability and remains cool during operation, allowing safe handling and relocation of the instrument.Gas Inlet and Tubing:
The gas inlet connects the burner to a gas source through rubber tubing. Properly secured tubing is essential to prevent leaks and maintain safety.Ignition Source:
A spark lighter or striker is typically used to ignite the gas-air mixture. Using a reliable ignition source minimizes risk and ensures immediate flame generation.
How to Use a Bunsen Burner Safely
Using a Bunsen burner requires careful attention to both setup and operational safety:
Setup:
Place a heatproof mat under the burner to protect your work surface and catch any sparks.
Position the burner at least 12 inches from overhead shelving or equipment.
Secure any loose hair, sleeves, or accessories, and ensure safety equipment is nearby.
Connecting the Gas Supply:
Check that all rubber tubing is firmly connected to both the gas source and the burner’s inlet.
Inspect tubing for cracks or leaks before operation.
Ignition:
Fully open the gas jet.
Use a spark lighter to ignite the burner.
With the collar fully closed, a yellow “safety flame” appears. This cooler flame is used as a visual indicator that the burner is on, though it is not suitable for heating experiments.

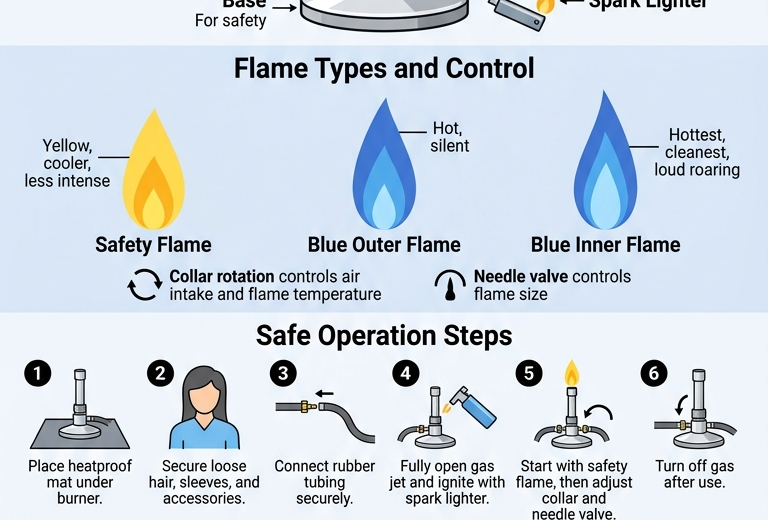

Adjusting the Flame:
Turn the collar counterclockwise to open air vents.
Two distinct flames appear:
Blue outer flame: Hotter, silent, and difficult to see.
Blue inner flame: Hottest and cleanest, with a characteristic “roaring” sound.
Adjust the needle valve to increase or decrease flame size as necessary.
Shutting Down:
Always turn off the gas supply at the source.
Allow the burner to cool before handling or moving.
Applications of the Bunsen Burner in the Laboratory
The versatility of the Bunsen burner allows for a wide range of laboratory applications:
1. Sterilization
Metal Instruments: In microbiology, inoculation loops, metal spatulas, scissors, and forceps are frequently flamed between samples.
Glass Instruments: Glassware such as serological pipettes can be briefly passed through the flame to remove contaminants.
Flame sterilization also maintains sterile openings, lifting airborne particulates away via convection currents.
2. Heating Experiments
Provides precise heat for reactions requiring controlled temperature.
Allows boiling, drying, and other heat-dependent procedures.
3. Microscopy Preparation
Glass slides can be passed through the flame to remove dust particles before mounting samples.
4. Glass and Metal Tool Modification
Thin glass rods can be heated and bent to create bacterial spreaders.
Bunsen flames allow for pulling, bending, or polishing pipettes.
Glass dissection needles or sealed wire picks can be created by heating and shaping materials over the flame.
5. Maintaining Sterile Work Areas
The flame’s convection current keeps experimental containers free from airborne contaminants.
Useful in cell culture, molecular biology, and microbiology experiments to maintain sterility around reagents and equipment.
Advanced Tips for Optimal Use
Always start with the collar fully closed to light a safety flame.
Use the Venturi effect to your advantage by gradually opening air vents for hotter, cleaner flames.
Avoid placing flammable materials near the burner.
Never leave a flame unattended, even briefly.
Adjust both needle valve and collar for precise control during experiments.
Always allow instruments to cool after flaming to prevent burns or damage.
Safety Considerations
Operating a Bunsen burner safely is critical:
Keep fire safety equipment nearby.
Monitor the flame at all times.
Use proper PPE, including lab coats, gloves, and safety goggles.
Ensure tubing connections are tight to prevent gas leaks.
Be mindful of flammable chemicals in proximity to the flame.
Always turn off the gas supply at the end of use.
Conclusion
The Bunsen burner is an essential tool in laboratories worldwide, offering precision, versatility, and the ability to maintain sterile working environments. Understanding its components, flame types, operational techniques, and safety precautions is critical for both beginner and experienced laboratory personnel. From sterilization and heating to glass modification and microscopy preparation, the Bunsen burner remains a cornerstone of laboratory experimentation. Mastery of this instrument not only increases efficiency but also ensures a safe and controlled laboratory environment.
