Microplate Reader: Principles, Procedure, Data Analysis, and Applications

Introduction to Microplate Readers

The microplate reader is a powerful, high-throughput laboratory instrument widely used in biomedical, molecular biology, and clinical research. It enables researchers to measure multiple samples simultaneously, making it an essential tool for modern experimental workflows.

Unlike traditional single-sample instruments, microplate readers work with multiwell plates (such as 96-, 384-, or even 1536-well plates), allowing hundreds or thousands of miniaturized experiments to be conducted in parallel.

These instruments are considered multimodal, meaning they can perform different types of measurements, including:

Absorbance
Fluorescence
Luminescence

This versatility makes microplate readers indispensable for applications such as protein quantification, gene expression analysis, enzyme kinetics, and metabolic studies.

Principle of Microplate Reader

The microplate reader operates by detecting light-based signals from samples placed in individual wells of a plate. The type of signal depends on the assay being performed.

1. Absorbance Measurement

$\log_{10}\left(\frac{I_0}{I}\right)$

Where:

A = absorbance
I₀ = incident light intensity
I = transmitted light intensity

Absorbance measures how much light is absorbed by a sample. Higher absorbance usually indicates higher concentration of the analyte.

2. Fluorescence Measurement

A fluorophore is excited by light at a specific wavelength
It emits light at a longer wavelength
The emitted light intensity correlates with analyte concentration

3. Luminescence Measurement

Light is produced through a chemical reaction (no external light source needed)
Often involves enzymes such as luciferase
Signal intensity reflects biological activity

Standard Curve: The Core of Quantification

A standard curve is essential for interpreting microplate reader data. It allows researchers to determine unknown sample concentrations based on known standards.

How It Works:

Prepare a series of standards with known concentrations
Measure their signal (absorbance, fluorescence, or luminescence)
Plot signal (Y-axis) vs concentration (X-axis)
Generate a line of best fit using linear regression

Linear Regression Equation:

$y = m x + b$

y = measured signal
x = concentration
m = slope
b = intercept

Unknown sample concentrations are calculated by plugging in the measured signal and solving for x.

Coefficient of Determination (R²)

Indicates how well the data fits the regression line
Ideal values range from 0.90 to 0.99
A value close to 0.99 indicates high accuracy

Components of a Microplate Reader (Detailed)

1. Multiwell Plate

Holds samples in organized wells
Available in different formats:
- 96-well (standard)
- 384-well (high-throughput)
- 1536-well (ultra high-throughput)
Plate types vary in:
- Well shape (flat, round, V-bottom)
- Material (polystyrene, glass)
- Optical properties

2. Optical Detection System

Includes light sources, filters, and detectors
Determines measurement mode:
- Absorbance → measures transmitted light
- Fluorescence → measures emitted light
- Luminescence → detects emitted photons

3. Plate Loading Tray

Holds and inserts the plate into the instrument
Must be handled carefully to avoid misalignment

4. Control Software Interface

Provides a graphical representation of the plate
Allows users to:
- Select wells
- Define sample types
- Set parameters (wavelength, mode, timing)

5. Pipetting Tools

Multichannel pipettes: Load multiple wells simultaneously
Reservoirs: Hold reagents
Single-channel pipettes: Used for precise additions

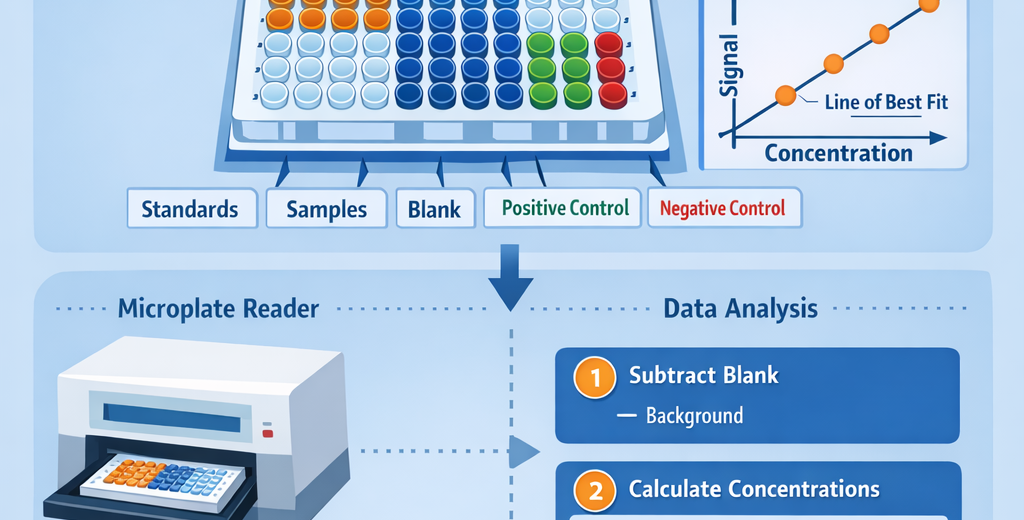

Step-by-Step Microplate Reader Procedure

1. Experimental Design

Determine assay type (absorbance, fluorescence, luminescence)
Prepare standards, samples, and controls
Plan plate layout carefully

2. Plate Preparation

Load the plate with:

Standards (known concentrations)
Samples (unknown concentrations)
Blank (no analyte, only buffer/reagents)
Positive control (expected result)
Negative control (no expected signal)

👉 Samples are typically loaded in:

Duplicate or
Triplicate

This reduces experimental error and improves data reliability.

3. Understanding Controls

Blank

Contains no analyte
Measures background signal
Used to subtract noise from all readings

Positive Control

Confirms the assay is functioning correctly
Should produce a strong signal

Negative Control

Confirms absence of unwanted reactions
Should produce little to no signal

4. Loading the Plate

Orient the plate correctly (important!)
Insert into loading tray gently
Avoid spilling or contaminating wells

5. Setting Parameters

Using the software:

Select measurement mode
Set wavelength(s)
Define reading order
Adjust sensitivity if needed

6. Running the Assay

Start the reading process
Instrument scans each well sequentially
Data is recorded automatically

7. Data Processing and Analysis

Step 1: Background Subtraction

Subtract average blank value from all wells

Step 2: Generate Standard Curve

Plot standard concentrations vs signal

Step 3: Perform Linear Regression

Obtain equation of best fit

Step 4: Calculate Sample Values

Use regression equation to determine unknown concentrations

Types of Microplate Reader Assays (Detailed)

1. Absorbance-Based Assays

Example: Bradford Protein Assay

Protein binds to dye
Causes change in absorbance
Used for protein quantification

2. Fluorescence-Based Assays

Highly sensitive
Used for detecting low-abundance molecules

Applications:

Gene expression analysis
Calcium flux studies
Reactive oxygen species detection

⚠️ Protect samples from light to prevent photobleaching

3. Luminescence-Based Assays

No excitation light required
Very low background noise

Example: Luciferase Assay

Enzyme reacts with substrate
Produces light
Used in gene expression and ATP measurement

High-Throughput Screening (HTS)

Microplate readers are central to high-throughput screening:

Uses 384- or 1536-well plates
Automated by robotic systems
Enables thousands of experiments simultaneously
